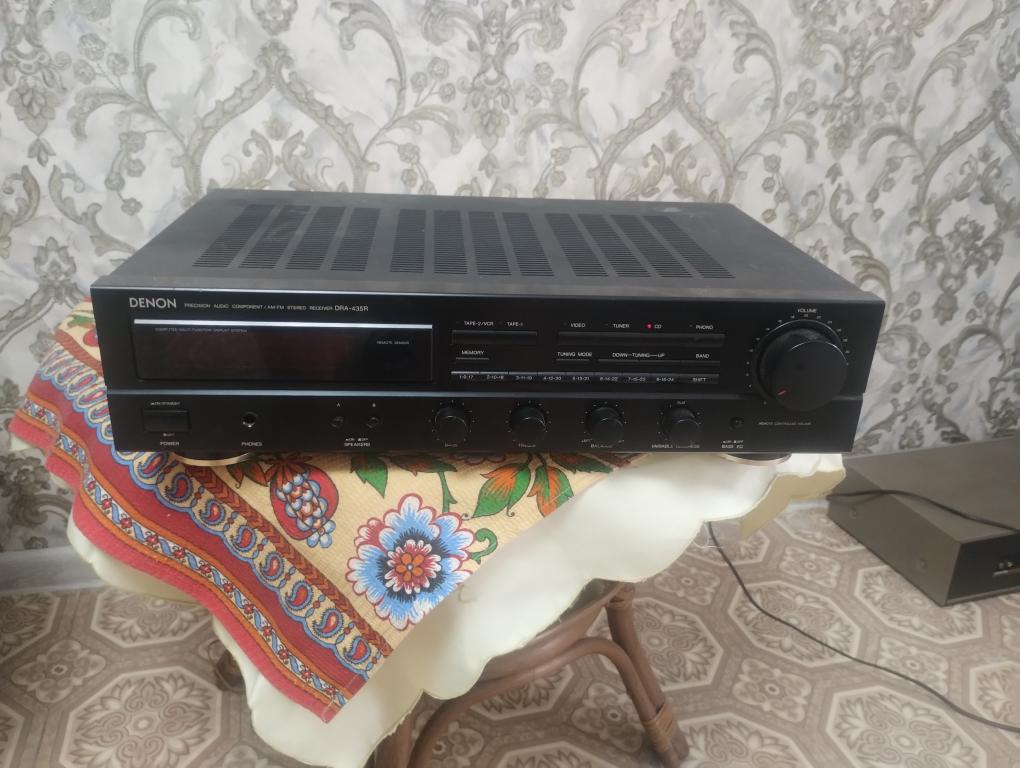

Denon DRA-435R

Ресивер в хорошем состоянии
комплектация сам ресивер кабель питания
General

Manufacturer: Denon
Model: DRA-435R
Year of manufacture: 1991/1992
Made in: Japan
Color: black, champagne
Remote control: yes
Power consumption: 150 W
Dimensions: 434 x 120 x 312 mm (W x H x D)
Weight: 6,7 kg
Original price approx:

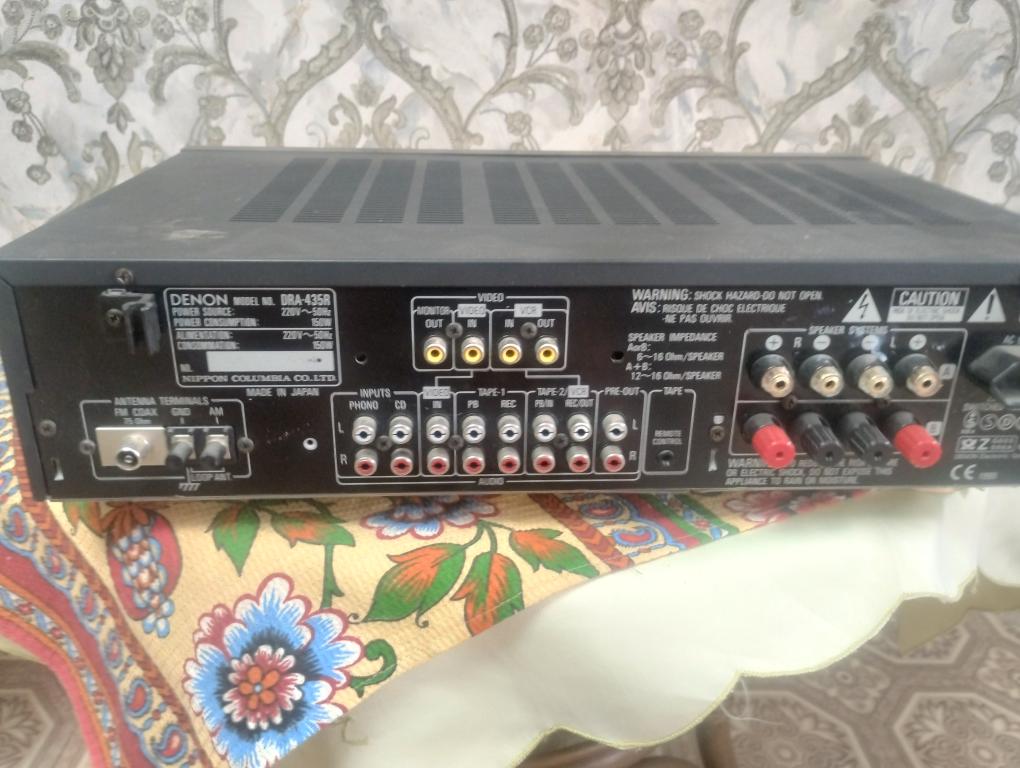

Connections

Number of inputs: 5
Phono MM: 2.5 mV / 47 kOhm
CD: 150 mV / 29 kOhm
Video: 150 mV / 29 kOhm
Tape 1: 150 mV / 29 kOhm
Tape2/VCR: 150 mV / 29 kOhm

Number of outputs:
Video out/Monitor: 1 Vpp / 75 Ohm

Technical data

Amplifier

Rated power
8 Ohm:
4 Ohm: 2 x 80 Watt (4 ohm, DIN 1 kHz, 1% distortion).
Peak power
8 Ohm:
4 Ohm: 2 x 120 Watt
2 Ohm: 2 x 140 Watt
Distortion factor: 0.03% (nominal power - 3 dB, 8 Ohm)
Attenuation factor:
Power bandwidth: 10 Hz - 40 kHz (8 ohms, 0.05% distortion).
Frequency response: 20 Hz - 50 kHz
Output impedance: 0.1 Ohm (1 kHz)
Preamplifier output level: 1V (100 kOhm)
Signal-to-noise ratio:
Stereo channel separation:
Tone control:
Bass: 100 Hz +/- 10 dB

Treble: 10 kHz +/- 10 dB

Loudness: low 50 Hz + 10 dB, high 10 kHz + 5 dB (When setting VARIABLE LOUDNESS "10")
High Filter:
Low Filter (Subsonic):
Mute:
Direct/Line-Straight:

Tuner

Reception:
Frequencies:
FM: 87.5 - 108 MHz

MW: 522 - 1611 kHz

Frequency response: 30 Hz - 15 kHz (+ 0.2 / -1.5 dB)
Usable sensitivity:
VHF: 0.8 µV

MW: 18 µV

Input sensitivity at 50 dB signal-to-noise ratio (75 Ohm IHF):
Mono: 1.7 µV

Stereo: 23 µV

Distortion factor: Mono: 0.4% / Stereo: 0.5%
Noise voltage ratio:
FM: Mono: 82 dB / Stereo: 78 dB

MW: 55 dB

Channel separation: 40 dB (1kHz)
eff. selectivity: 60 dB (+/- 300kHz)
common wave selection: 1.5 dB
spurious selection:
Image frequency attenuation: 65 dB
IF attenuation:
AM suppression:
Output level:
RDS: no
Station memory: 24 AM/FM stations

Special Features

Loudness circuit with variable characteristics
Bass equalizer
preamplifier outputs
motor-driven, remote-controllable volume control
